5630smd constant current 150lm/w Samsung Super length smd5630 70leds/m 140leds/m led strips for linear lighting system

Product Categories

NEWSTAR LED CO., LIMITED

Contact Now

5630smd constant current 150lm/w Samsung Super length smd5630 70leds/m 140leds/m led strips for linear lighting system

Name: 5630smd constant current 150lmw Samsung Super length smd5630 70ledsm 140ledsm led strips for linear lighting system
Brand: NEWSTAR
Price: 1 USD

China 5630smd constant current 150lm/w Samsung Super length smd5630 70leds/m 140leds/m led strips for linear lighting system wholesale

Brand Name : NEWSTAR

Model Number : NSS-2835-120

Certification : CE ROHS UL TUV SAA

Place of Origin : China

MOQ : 100meters

Price : 1-10USD

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000meters/month

Delivery Time : 5-8 workdays

Packaging Details : natural package

Product Name : 5M super length smd5630 led strips

Model No. : NSS-5630-140

LED Type : Samsung 5630smd

Voltage : DC24V

Contact Now

5630smd constant current 150lm/w Samsung Super length smd5630 70leds/m 140leds/m led strips for linear lighting system

We Newstar's 5630smd led strips Constant Current Circuit Design, 5Meters working length in series without any brightness drop connection with one end power supply. all with same brightness on both ends. High Color Rendering Index(CRI>80 CRI>90),High Brightness: 50-55lm/led, DC24V Constant Current Version. welcome to ask price.

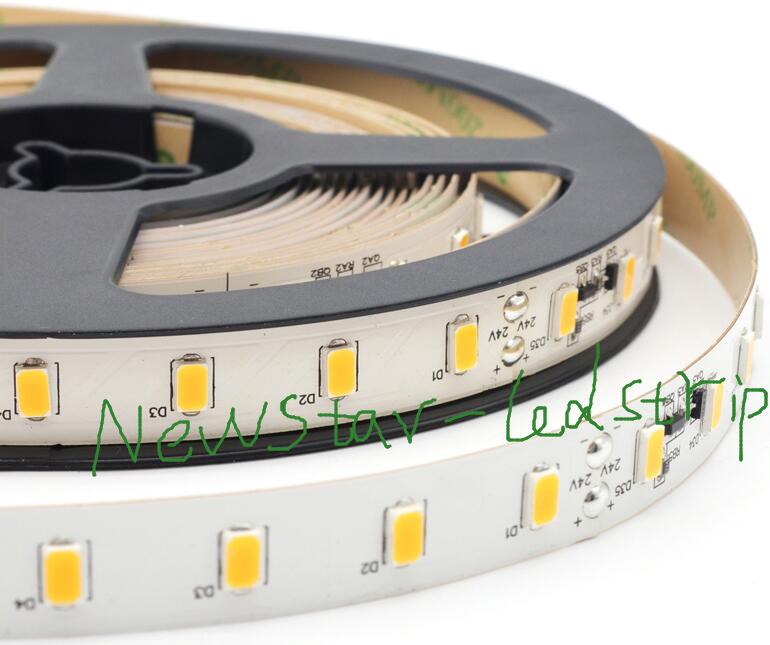

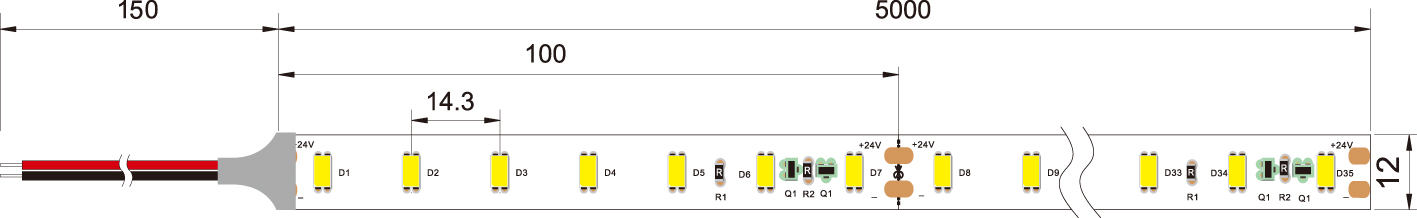

5M 5630smd Super Length 70leds/m led strip

5630smd constant current 150lm/w Samsung Super length smd5630 70leds/m 140leds/m led strips for linear lighting system

Technical Parameters

Product Name: 5M 5630smd super length 70leds/m led strip
Model No: NSS-5630-70
Led Type: SMD5630
Led Quantity: 70Leds/M
Lumen/Meter: 1358-1592lm/Meter
Actual Power(w/m): 13.3W/Meter
CRI(Ra): >80
Max Length: 5Meters
PCB Width: 12mm
Voltage: DC24V
Cuttable size: 100mm/24V
Color: Warm white/Natural white/Cool white
CCT(K): 2700K~6000K
IP Grade: IP65/IP67/IP68
Ambient Temperature: -25℃ ~ +45℃
Warranty: 5-year or 30000hr whichever comes first
Length: 5Meter/Roll

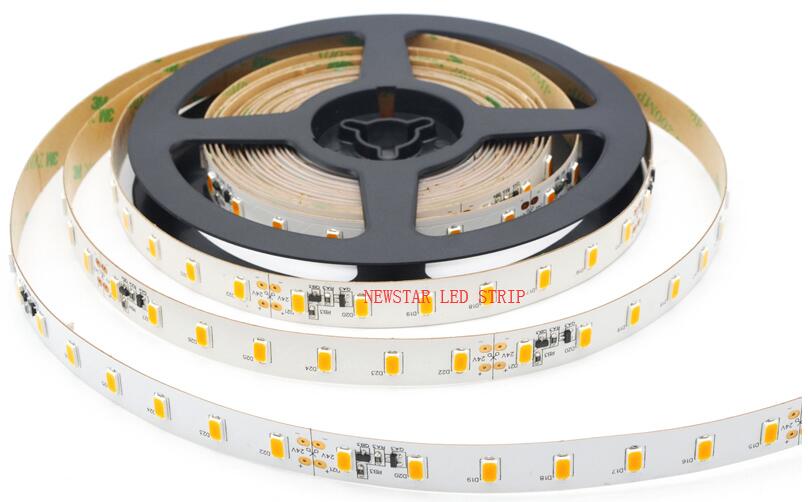

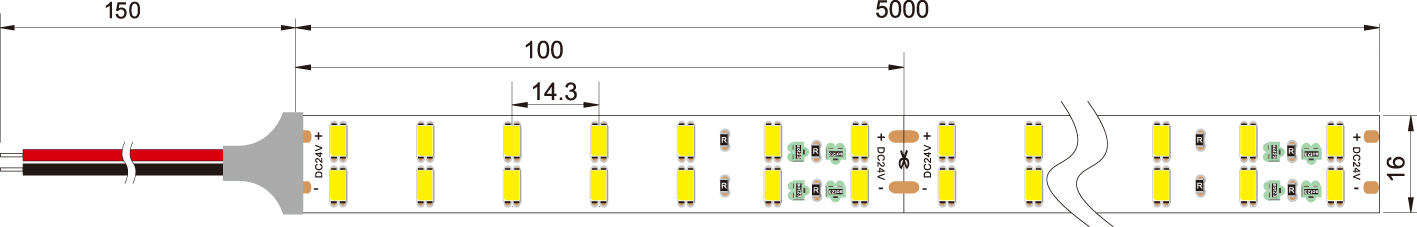

140leds/m 5630SMD Super length led strip lights parameters

5630smd constant current 150lm/w Samsung Super length smd5630 70leds/m 140leds/m led strips for linear lighting system

Technical Parameters

Product Name: 5M super length 5630smd 140leds/m led strip
Model No: NSS-5630-140
Led Type: SMD5630
Led Quantity: 140Leds/M
Lumen/Meter: 2804-3287lm/Meter
Actual Power(w/m): 27W/Meter
CRI(Ra): >80
Max Length: 5Meters
PCB Width: 15mm
Voltage: DC24V
Cuttable size: 100mm/24V
Color: Warm white/Natural white/Cool white
CCT(K): 2700K~6000K
IP Grade: IP65/IP67/IP68
Ambient Temperature: -25℃ ~ +45℃
Warranty: 5-year or 30000hr whichever comes first
Length: 5Meter/Roll

5630smd constant current 150lm/w Samsung Super length smd5630 70leds/m 140leds/m led strips for linear lighting system

5630smd constant current 150lm/w Samsung Super length smd5630 70leds/m 140leds/m led strips for linear lighting system Images
